Push Button

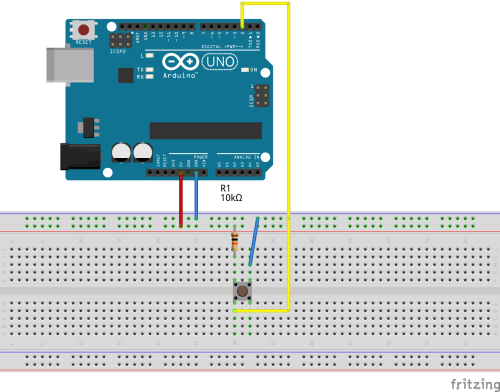

On each side with two pins, the pins are connected together and can be seen as one pole of the switch.

The switch is closed when push-button is pressed and opened when push-button is released.

Button will send LOW when pressed and HIGH when released.
