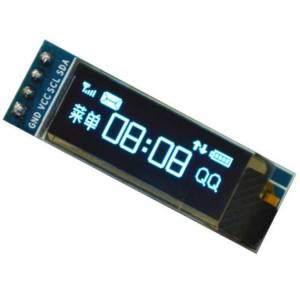

I2C OLED 0.91 inch Screen

Exists in various format (128×32, 128×64)


  • 5V ready
  • Can use I2C (two wires) or SPI communication

You can use Adafruit SSD1306.

The 128×32 uses address 0x3C

If you are connecting to SDA/SCL using I2C connect pin SDA to UNO A4 and SCL to UNO A5 (default pins, respectively 20 and 21 on a Mega)

Basic Arduino text example

Bought from MakerHawk in chine.
